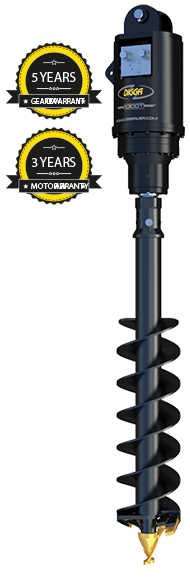

2 Speed Drilling Drives for Excavators

Digga's 2 Speed Auger Drives are designed to suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders and backhoes with flows between 16 to 53 gpm. We distribute our 2 Speed Drilling Drives throughout North America.

Features
  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with Eaton VIS motor
  • Integrated PRV (Pressure Relief Valve)
  • Extreme duty shaft locking system
  • Drive fits down the hole for greater digging depth
  • Low maintenance with 5yr gear box and 3yr motor warranty
Drilling Drive Specifications
Details 13DDt 16DDt
Torque (ft-lbs @ 3000 Psi) 11,441 14,098
Max Torque
(ft-lbs @ 3500 Psi)
13,347 16,448
Recommended Flow (gpm) 16-53 20-53
Motor Type Eaton Eaton
Max pressure
( do not exceed)
3500 psi @ 33 gpm
Max flow
( do not exceed)
53 gpm @ 2200 psi
Max horse power 67 67
Pressure relief valve Included Included
standard output shaft 3" Hex 3" Hex

Recommended auger A8 / rC8 / rC10 A8 / rC8 / rC10
Max auger diameter
(clay / shale)*
36" 48"
Max auger diameter (earth)* 60" 60"
Weight (lbs) 394 394
Overall length (in) 38.6" 38.6"
Diameter (in) 14.4" 14.4"
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
