Augers for Mini Excavators 0.75-3t

Digga's range of drilling augers for 0.75 ton to 3 ton Excavators are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton motors with optional pressure relief valve the innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimizing your returns.

Digga's new Halo Alignment System is the future of drilling. Located on the hood of the ring on the Drilling Drive, the Halo Alignment system eliminates the need for any spotter & ensures all holes drilled are plumb.

Digga drilling augers are backed by industry leading warranty and local factory support.

Features

  • Compact high torque Digga manufactured gearbox
  • Digga designed Eaton motor with optional intergrated pressure relief valve to eliminate the need for bulky valve blocks and reduce many potential leak points
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • Halo Alignment System available
  • 5 year gearbox and 3 year motor warranty
  • Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
Specs 1dSs 2dSs
Torque (ft-lbs @ 3000 Psi 1,467 2,254
Max Torque ft-lbs @ 3500 Psi 1,712 2,630
Recommended Flow (gpm) 6-16 10-26
Motor Type Eaton Eaton
Max pressure - do not exceed 3500 psi @ 16 gpm
Max flow - do not exceed 30 gpm @ 1800 psi
Max horse power 33 33
Pressure relief valve optional optional
standard output shaft 2" Hex 2" Hex
Halo optional optional

Recommended auger A4 / rC4 A4 / rC4
Max drilling diameter (clay / shale)* 12" 24"
Max drilling diameter earth* 24" 30"
Weight (lbs) 101 123
Overall length (in) 24.5" 25.9"
Diameter (in) 7.4" 9.4"
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.

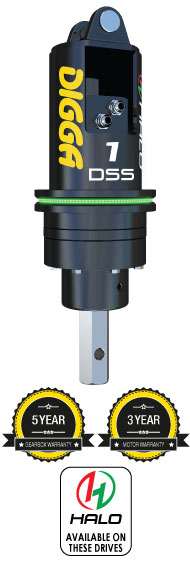

Digga North America - 1DSS Auger Drive Unit
