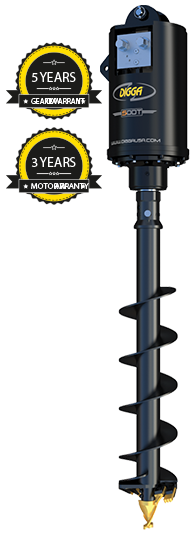

2 Speed augers for Excavators and Backhoes 4.5-8t

Digga's 2 Speed Augers are designed to suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders and backhoes with flows between 10- 36gpm. We distribute our 2 Speed Drilling Augers throughout North America.

Features

  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with Eaton VIS motor
  • Integrated PRV (Pressure Relief Valve)
  • Extreme duty shaft locking system
  • Drive fits down the hole for greater digging depth
  • 5 year gearbox and 3 year motor warranty
  • Low maintenance
Specs 5DDt 6DDt 7ddt
Torque (ft-lbs @ 3000 Psi) 4,067 5,012 6,306
Max Torque (ft-lbs @ 3500 Psi) 4,745 5,847 7,357
Recommended Flow (gpm) 10-36 10-36 10-36
Motor Type Eaton Eaton Eaton
Max pressure (do not exceed) 3500 psi @ 27 gpm
Max flow (do not exceed) 53 gpm @ 1800 psi
Max horse power 55 55 55
Pressure relief valve Included Included Included
standard output shaft 2.5" Hex 2.5" Hex 2.5" Hex

Recommended auger A6 / rC6 A6 / rC6 A6 / rC6
Max drilling diameter
(clay / shale)*
24" 30" 30"
Max drilling diameter (earth)* 40" 40" 48"
Weight (lbs) 350 350 350
Overall length (in) 34.4" 34.4" 34.4"
Diameter (in) 14.4" 14.4" 14.4"
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
