Agricultural augers
  • Digga North America - Agricultural machinery attachments.
  • Digga North America - Agricultural machinery attachments.

Augers for agricultural machines

Digga's drilling augers for agricultural machines are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of augers on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton bell motors and input housing, the innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimizes maintenance, optimizing your returns.

Digga drilling augers are backed by industry leading warranty and local factory support.

Features

  • Compact Digga manufactured gearbox
  • Digga designed Eaton motor with optional intergrated pressure relief valve to eliminate the need for bulky valve blocks and reduce many potential leak points
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • 5 year gearbox and 3 year motor warranty
  • Over 30 years design and manufacturing experience
  • Variety of mounting options available
SPECS DDD 1dSs 2dSs 3dSs
Drive system Direct Drive Gearbox Gearbox Gearbox
Torque (ft-lbs @ 3000 Psi) 745 1,467 2,254 2,829
Max Torque ft-lbs @ 3500 Psi 869 1,712 2,630 3,300
Recommended Flow (gpm) 4-12 6-16 10-26 10-30
Motor Type Eaton Eaton Eaton Eaton
Max pressure - do not exceed 3500 psi @ 16 gpm
Max flow - do not exceed 30 gpm @ 1800 psi
Max horse power 33 33 33 33
Pressure relief valve N/A N/A N/A N/A
standard output shaft 2" Hex 2" Hex 2" Hex 2" Hex

Recommended auger 4
Series
4
Series
4
Series
4
Series
Max drilling diameter (clay / shale)* 12" 12" 24" 24"
Max drilling diameter earth* 20" 24" 30" 30"
Weight (lbs) 91 101 123 123
Overall length (in) 22.25" 24.5" 25.9" 25.9"
Diameter (in) 7.4" 7.4" 9.4" 9.4"
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.

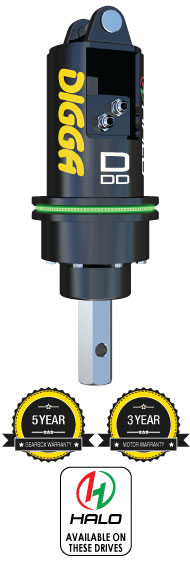

Digga North America - Direct Drilling Drive Unit
